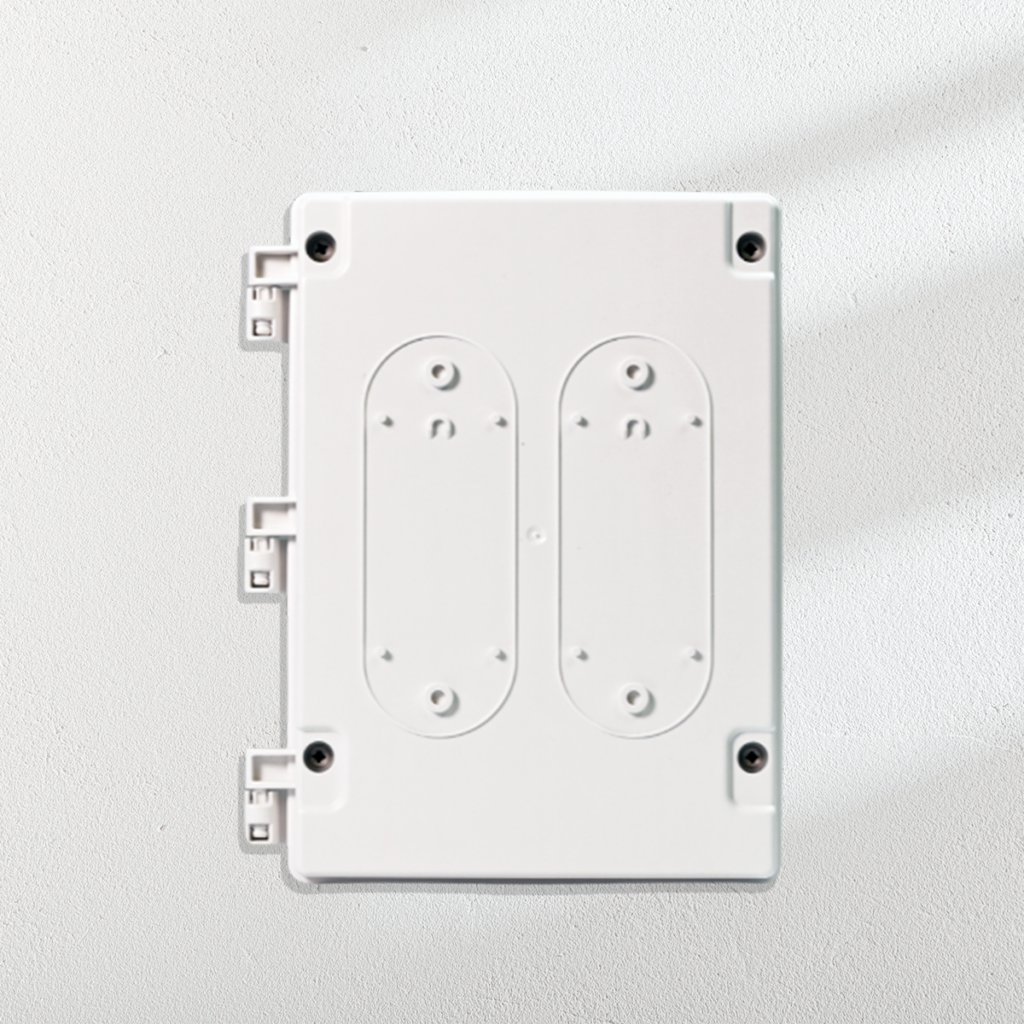

Bromic Affinity Smart-Heat™ On/Off Controllers

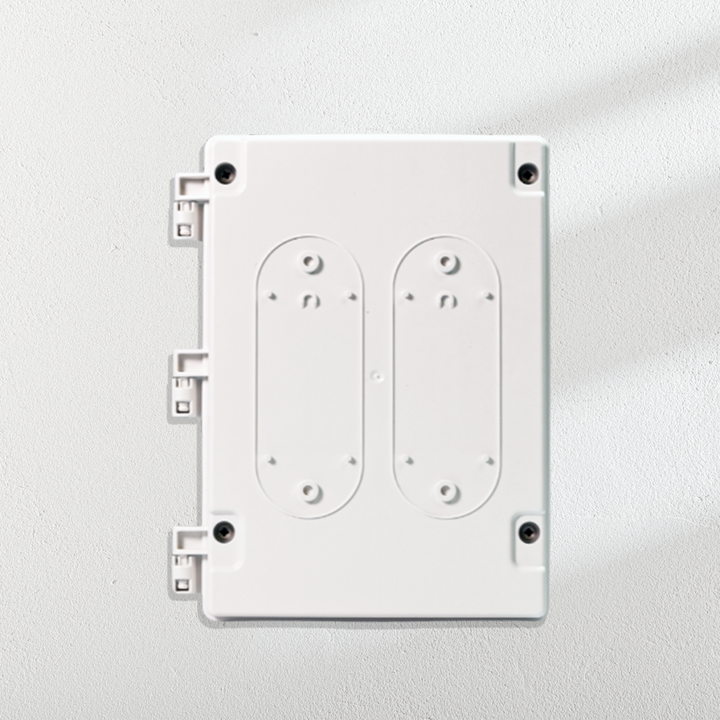

Model Smart-Heat Control On/Off 1 CH:

Part Number: BH3130051

Number of Channels: 1

Voltage-Max Capacity Per Channel: 100-127V-1kW
208-277V-6kW

Operating Temperature Range: -4 F to +86 F

Non-Operating Temperature Range: -22 F to +158 F

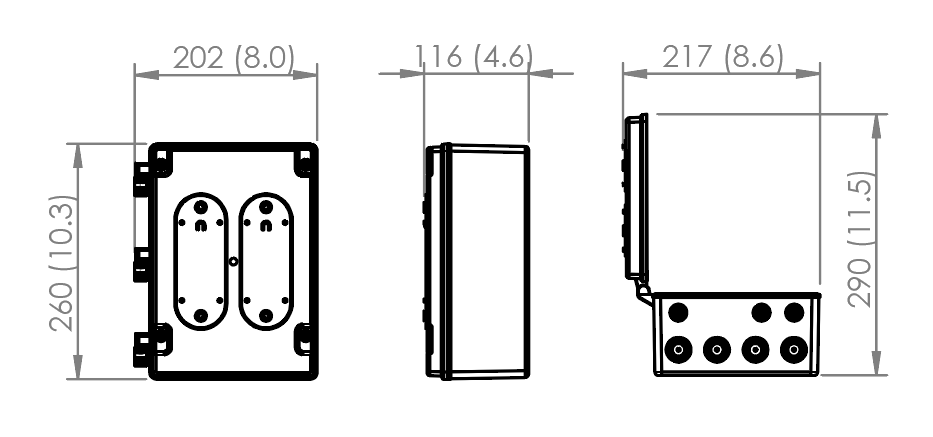

Dimensions: 11.4 x 8.0 x 4.4"

Model Smart-Heat Control On/Off 2 CH:

Part Number: BH3130052

Number of Channels: 2

Voltage-Max Capacity Per Channel: 100-127V – 1kW
208-277V – 6kW

Operating Temperature Range: -4 F to +86 F

Non-Operating Temperature Range: -22 F to +158 F

Dimensions: 11.4 x 8.0 x 4.4"

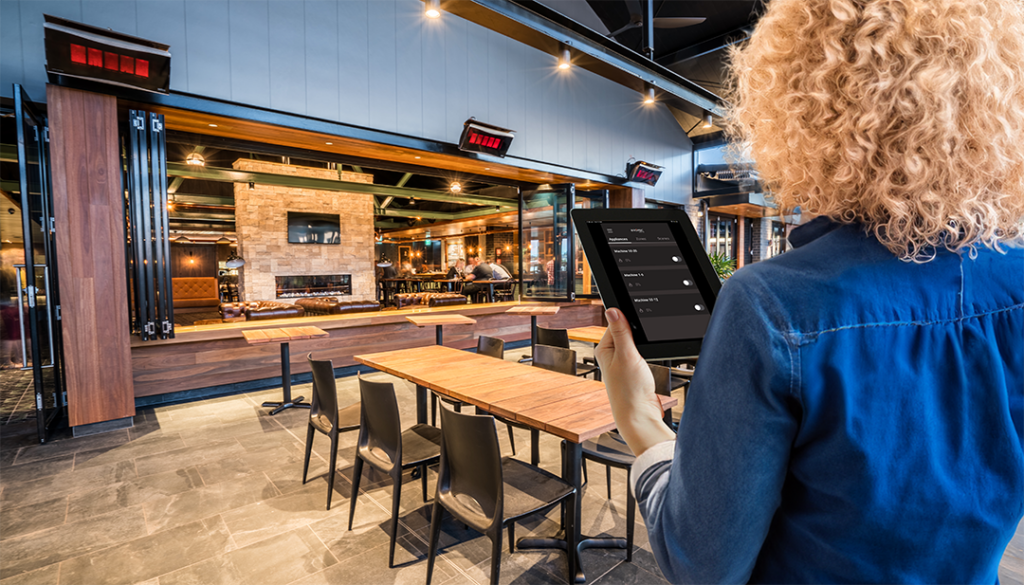

Enhance Comfort with Bromic’s Affinity Smart-Heat™ Controls

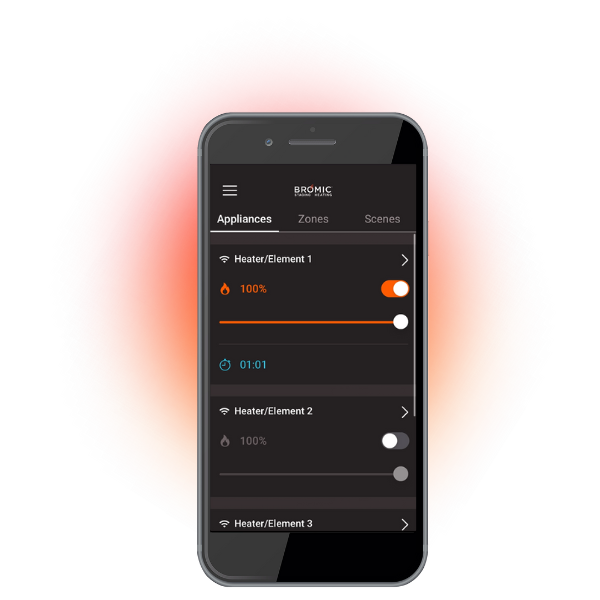

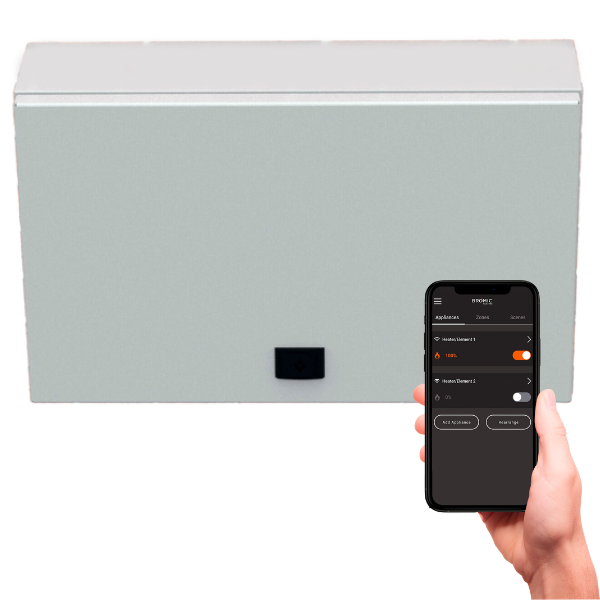

Unlock full control of your Bromic heaters with Affinity Smart-Heat™ Controls, designed to pair effortlessly via Wi-Fi, Bluetooth, or optional Ethernet with the Bromic Heating app. This advanced system puts customizable comfort at your fingertips, offering:

Wi-Fi, Bluetooth, or Ethernet connectivity

Full heat control with On/Off and dimming functionality

Multi-heater management for limitless controllers

Customizable heater grouping within zones

Timer and scheduling settings

Voice control integration with Amazon Alexa and Google Home

Multi-site management from a single app

Admin and multi-user management options

Compatibility with home automation or building management systems
